Underground Utilities Detection & Mapping

Underground utility mapping (UUM) in Malaysia is the process of detecting, locating, and recording buried pipes, cables, and infrastructure beneath the ground surface. Using geophysical methods such as Ground Penetrating Radar (GPR) and electromagnetic pipe-and-cable locators, surveyors produce a UDM Plan — a map showing the position, depth, and type of subsurface utilities. UUM is governed by standards set by JUPEM (Jabatan Ukur dan Pemetaan Malaysia) under Director General Circular 1/2006.

Yes. Under Section 40(1) of the Street, Drainage and Building Act (Act 133), all utility agencies and installers are required to comply with JUPEM’s Standard Guideline for Underground Utility Mapping before undertaking excavation works. JUPEM requires that underground utility information for all new projects attain Quality Level A, which means a licensed surveyor must carry out as-built surveys during construction. Proceeding without a UUM survey exposes contractors and developers to regulatory penalties, utility damage liability, and project shutdown.

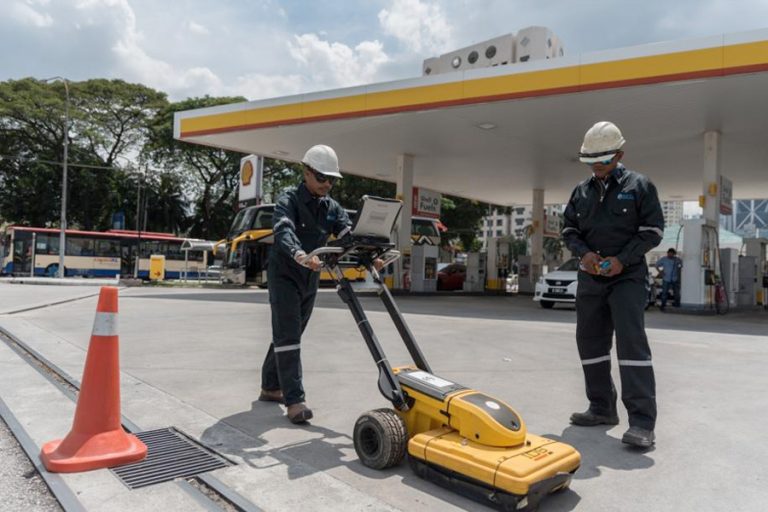

Underground utility detection in Malaysia typically uses two primary methods: electromagnetic pipe-and-cable locators, which detect metallic utilities (steel pipes, copper telecom lines, power cables) by transmitting a signal along a conductor; and Ground Penetrating Radar (GPR), which uses high-frequency radio waves to detect both metallic and accessible non-metallic utilities (fibre optic cables, PVC pipes, sewerage lines). Both methods are used in combination, in conformity with JUPEM guidelines, to maximise detection coverage.

No. GPR is effective for detecting both metallic and non-metallic utilities but has limitations. Detection accuracy is affected by soil conditions — clay-heavy, waterlogged, or heavily compacted soils reduce signal penetration and accuracy. Non-metallic utilities such as plastic water pipes or unmarked fibre ducts are harder to detect than metallic ones. The depth, dielectric properties of surrounding material, and the utility’s material all influence result quality. For this reason, professional UUM combines GPR with electromagnetic locators and cross-references existing utility records where available.

Detection depth varies by method and site conditions. Electromagnetic pipe-and-cable locators can detect metallic utilities at depths typically between 1 to 5 metres under standard soil conditions. GPR can penetrate to depths of 3 to 10 metres, but practical detection depth is reduced in wet, clay-rich, or highly mineralised soils. Depth accuracy is determined by the dielectric properties of the surrounding material, and readings should always be validated by a qualified surveyor rather than taken as absolute measurements.

A completed UUM survey produces a UDM Plan (Underground Utility Detection and Mapping Plan) showing the detected utilities plotted onto a base map with their horizontal positions and estimated depths. Deliverables typically include CAD or GIS-format drawings, a survey report, and utility data formatted to JUPEM’s submission requirements. For construction and infrastructure projects, the plan also includes cross-section profiles at critical locations and a traffic management plan where survey works involve road corridors.

Underground utility mapping is required across any sector that involves ground-breaking or excavation near existing infrastructure. In Malaysia, the primary industries are oil & gas (pipeline routing, refinery works), power and utilities (TNB, Gas Malaysia, SYABAS network extensions), telecommunications (TM, fibre rollout), property and infrastructure development (road widening, building construction), aviation (airport apron and taxiway works), and government infrastructure projects. Both private developers and government-linked companies (GLCs) are subject to the same JUPEM compliance requirements.

Excavating without a UUM survey risks damaging buried electricity cables, gas pipelines, water mains, or telecommunications lines — resulting in service disruptions, safety hazards, financial penalties, and project delays. In Malaysia, damage to TNB or Gas Malaysia infrastructure can trigger legal liability under the relevant utility acts. Beyond regulatory risk, undetected utilities can cause fatal accidents, fire, or explosion on site. JUPEM guidelines exist specifically to prevent such incidents, and most project owners and main contractors now require a UUM report before issuing excavation permits.

Duration depends on the site area, access conditions, utility density, and required quality level. A small site (under 1 hectare) in an urban corridor typically takes 1–3 days of fieldwork, followed by 2–5 days of data processing and plan preparation. Large infrastructure corridors — such as pipeline routes or road widening projects spanning kilometres — may require several weeks. Providing accurate project scope (corridor length, site area, required deliverable format) when requesting a quote allows the surveyor to give a realistic schedule.

A topographic survey records the surface of the land — ground levels, terrain features, and visible structures — to produce contour and elevation data. Underground utility mapping focuses entirely on what is beneath the surface: the location, depth, and type of buried pipes, cables, and ducts. For most construction and infrastructure projects in Malaysia, both surveys are required and are often conducted together by the same surveyor to produce an integrated site dataset that covers above-ground and below-ground conditions simultaneously.
